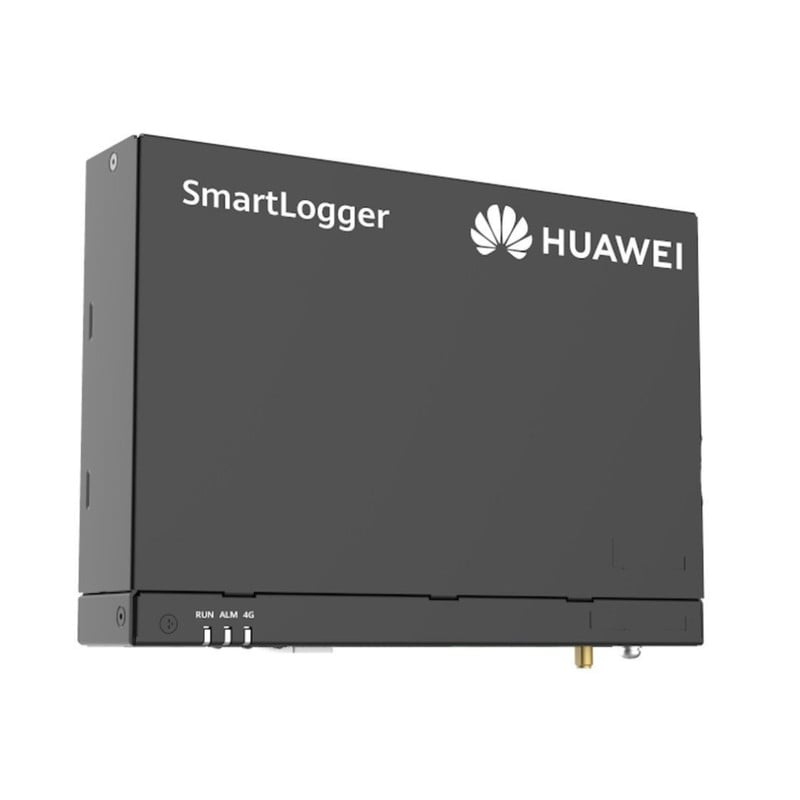

Huawei SmartLogger3000A
Huawei — supplied across every market we serve by Huawei MJS Solutions. The SmartLogger3000A is an centralized data logger. Designed for C&I and utility plant monitoring.
- Max Inverters Supported: 80
- WAN Port: 10/100/1000 Mbps
- LAN Port: 10/100/1000 Mbps
1,200 AEDincl. VAT
In stock
Huawei SmartLogger3000A features
About the Huawei SmartLogger3000A
Huawei — supplied across every market we serve by Huawei MJS Solutions. The SmartLogger3000A is an centralized data logger. Designed for C&I and utility plant monitoring. Key features: supports up to 80 inverters. 5-year warranty. Available across the Middle East, Europe, and Africa via Huawei MJS Solutions, the authorised distributor based in Dubai.
Specifications last updated 3 May 2026
Huawei SmartLogger3000A full specifications
Electrical
| Max Inverters Supported | 80 |
|---|---|
| WAN Port | 10/100/1000 Mbps |
| LAN Port | 10/100/1000 Mbps |
| RS485 COM Ports | 3 |
| USB Port | USB 2.0 |
| Wireless | WLAN (commissioning), 4G/3G/2G (optional) |
| Digital Inputs (DI) | 4 |
| Digital Outputs (DO) | 2 |
| Analog Inputs (AI) | 4 |
| Operating Temperature | -40 °C ~ +60 °C |
| Humidity | 5%-95% RH (Non-Condensing) |
